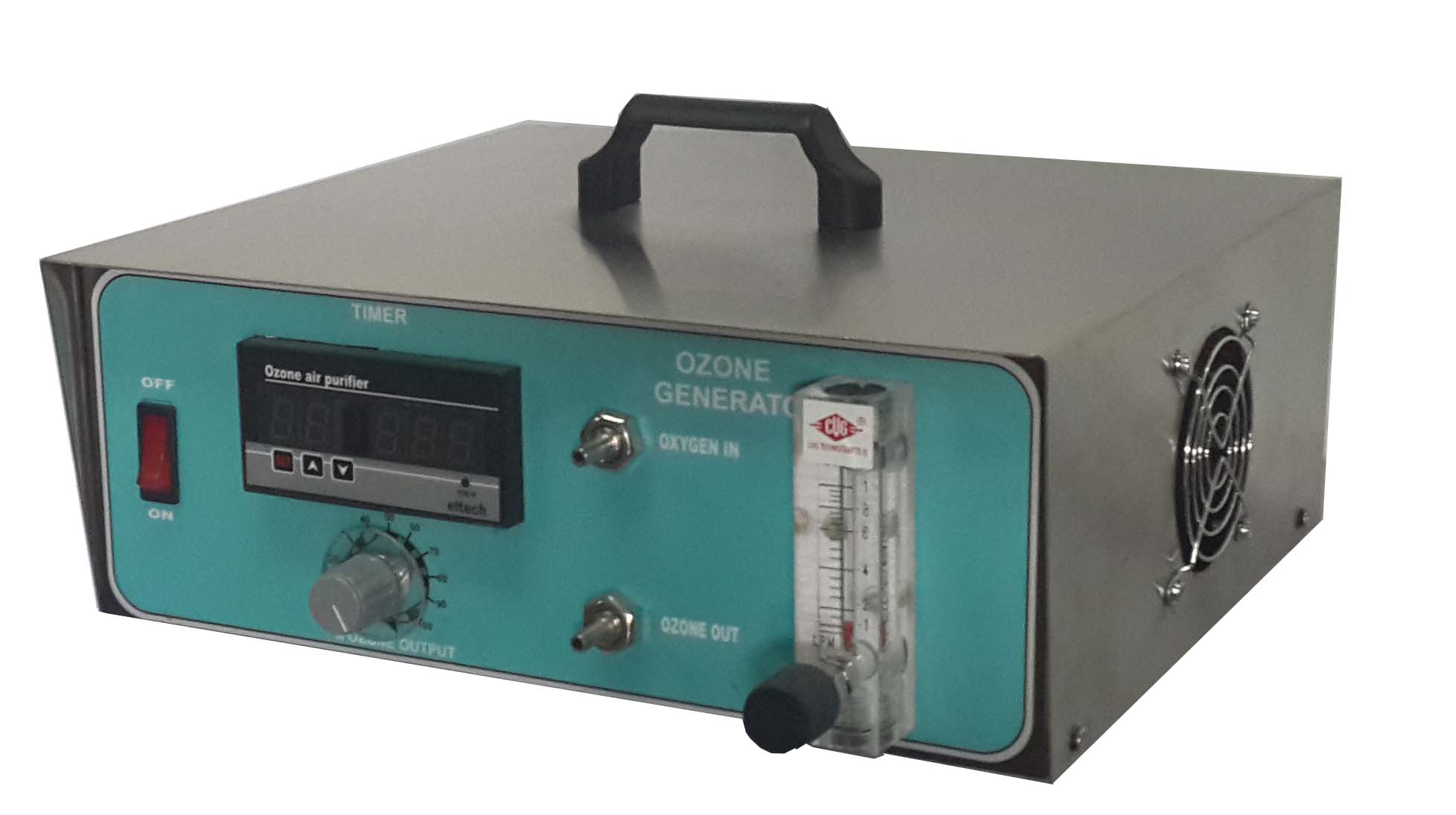

  Laboratory Ozone Generator

eltech Portable ozonator is a new line of ozonizers cheap, easy to use and complete ideal for laboratory, Research Institutes and pilot tests.Our Portable ozone generator produces high concentration ozone with oxygen as feed gas.


Rated Flow 3 LPM (6.36 SCFH)
Concentration at Rated Flow 6.3%
Standard Operating Pressure 10 to 25 PSI
Max Operating Pressure 50 PSI (3.52 Bar)
Supply Gas Oxygen
Adjustable Ozone Output Dial Yes
Cooling Air Cooled
Corona Cell Materials Aluminum with Ceramic Dielectric
Flowmeter Yes
Pressure Gauge No
Operating Frequency High Frequency 5,000 - 30,000 Hz
Ozone/Oxygen Connections 1/4-inch Compression Fittings
Ozone Output 10 grams/hour
Electrical 230 VAC 50 Hz 2 A
Weight 5 kg
Dimensions 5 x 5 x 14 inches (12.7 x 12.7 x 35.6 cm)
Warranty Eltech Warranty: 1 year (12 months)
