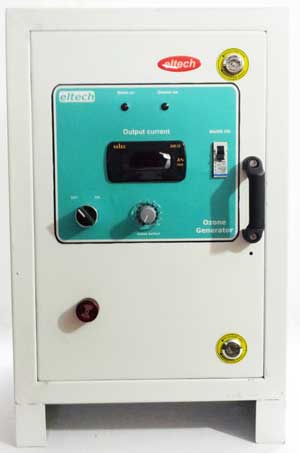

The eltech ozone generators is a new line of ozonizers cheap, easy to use and complete ideal for laboratory, Research Institutes and pilot tests. Ozone is produced starting from air sucked from ambient, compressed and transformed in ozone This new line of ozone generators is fully assembled and tested in factory. It includes mechanical, electrical and instrumental fittings including compressor.
| MODEL NO. | el-oz-O-10gm/hr |
| Ozone Output | 10 gm/hr |
| Air Flow Rate | 6 LPM |
| Oxygen pressure | 7 PSI |
| Ozone Generation Principle | On Corona discharge principle |
| Input Supply | 230V A. C, 50 Hz, 1 phase, + 5% supply with earthing |
| Power Consumption | 300 Watt |
| O/P Frequency | 5 - 10 Khz |
| High Voltage O/P | 3600V PP Volt |
| MOC | wetted parts is in ozone compatible material and outer panel is in mild steel with power coated |
| O2 Inlet/ O3 Gas O/L | SS 316, 6 mm Nozzel |
| Cooling Water Inlet / O/L | PU Connector |
| 8 x 6 mm Nozzel | |
| Ozone O/P Control | 20 - 100% |
| HT Transformer | Air Cooled |
| Way of Cooling | Air Cooling for internal and external electrode |
| Ambient Tempreature | Optimum performance at ambient temperature not exceeding 32 dg |
| Ozone Concentration | 80-90 mg/I |
| Indication | Mains on LED/OZONE ON/OZONE CURRENT |
| DIMENSION OF OZONATOR | |
| Length | 325mm |
| Width | 170mm |
| Height | 630mm |
| Weight of Ozone Generator | 15 Kg |
